Reliable Checkpoint Mobile Guard Shack System in the NYC Metro Area

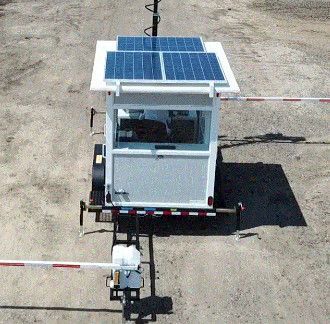

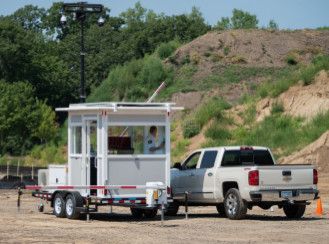

Streamline Telecom is proud to offer the CheckPoint mobile guard shack system, a “purpose-built” platform that combines a guard shack, gate control, video surveillance and lighting technologies. This mobile system offers a weatherproof, climate-controlled, spacious security shack along with the unique ability to control ingress and egress to a remote facility.
Adding video surveillance and lighting capabilities makes this a multi-purpose platform for many different applications. Ideal for construction, utilities, oil and gas and any other temporary work or storage areas requiring additional security.

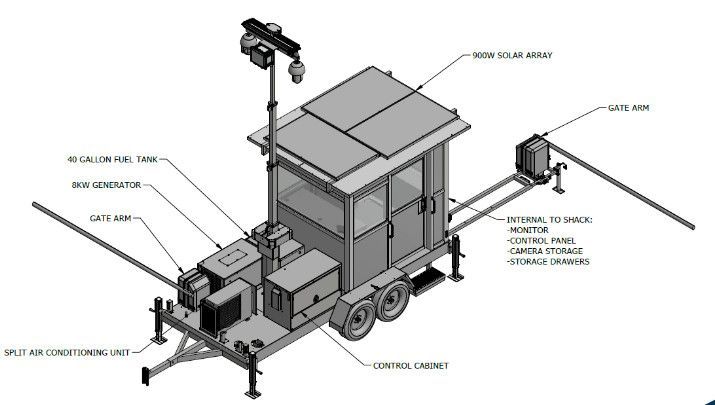

Key Features
Trailer
- Deployed: 330” x 100” x 240” (L x W x H) (includes mast fully extended and tongue length of 53” and rear gate control arm extended at 100”)
- Travel: 250” x 100” x 120”
- Gross weight: 6,300 lbs.
- 2 5/16 ball/adjustable pintle hitch
- Dual 3500 lb. torsion axles, electric brakes
- 7 pin wire towing harness for lighting and brakes
- 4 outriggers with jacks
- Rack enclosure with latching, lockable door, 2 pressurized struts
- Ventilated battery storage compartment
- D.O.T. compliant external safety lighting
- Interior (rack enclosure) LED lighting (auto on/off)
- 1 high current outlet on front bench/desk
- Multiple USB charging ports – GPS tracking
Mast with Cabling Specifications
- 20 ft. telescoping, 4 sections
- Electric winch for raising and lowering of mast
- Mast stabilization system
- Cable management system
- Mid-mast junction box – for additional accessories
- Top mast LED strobe light assembly; viewable 360°
- Top mast LED flood lights; 2 – 42” light bars with 33,000 lumens
Mast with Cabling Specifications
- Dimensions: Exterior 90” X 72” X 90” (L x W x H)
- Interior 82” X 64” X 88” (L x W x H)
- Extra heavy duty tempered safety glass windows (4 – sides)
- 2 sliding lockable doors with widows
- 2 non-slip removable steps
- Interior and exterior recessed (in soffits) lighting
- 2 built-in shelves or work areas at front and back
- HVAC system – split air conditioning/heating system, Fujitsu Halcyon – 9000 BTU, ductless unit
- Interior storage chest – 32”(H) x 27”(W) x 18”(D), 5 drawers
- Camera storage – 4 camera storage rack
- Master control panel
- Mast, trailer and shack lighting control
- Generator control
- AC and system status digital display
- USB charging (also on shack outlets)
Other Specifications
Barrier Gates (Site Entrance & Exit)
- 2 – 12 ft. removable barrier arms with colored LED notification status
- Exit arm and controller extend up to 100” from back of trailer
- On-board arm storage
- 3 photo-eye vehicle drive-up detector sensors
- Wireless remote control for dual barrier arm gate control operation
MPS Remote Status Monitoring
System status and alarm reporting with remote
Control capabilities through MPStatus & Control
- Temperature monitoring
- Fuel level
- Door open status
- Battery voltage
- Battery currents
- GPS
- Generator status
- Remote gate status and runtime gate control
Electrical
- Embedded 8000 watt diesel generator with 40 gallon fuel tank
- Shore Power––External 220 VAC power connection port
- Battery Power––800 Ah AGM battery package @ 12VDC
- Tri-State battery charging system
- Solar Power––900 watt solar package
Rack Mount Enclosure
- Interior environmentally controlled cabinet
- Capacity: 6U
- Size: 19” standard rack mount 17”D X 13.5” H
- LED lighting (auto on/off)
- 40 AMP 24VDC charging system
- 300 watt pure sine wave Inverter
- Electronic equipment rack alarming outputs: Door open, Low fuel, Generator running, Generator failure
